Heinsohn's Country Store is fun

Meat Grinder Parts

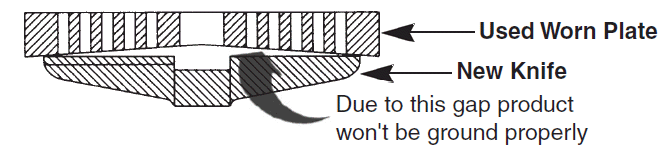

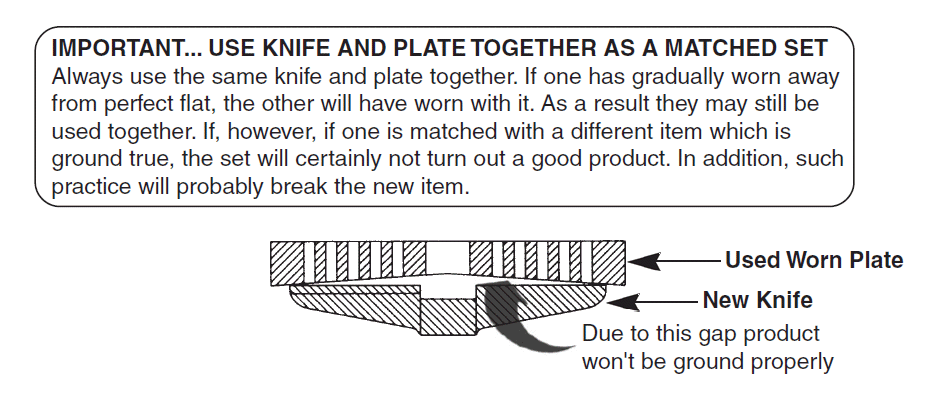

New plates are important
New Grinder Plates are just as important as new Grinder Knives!

Click here to see Grinder Head Assembly
we have your parts!
We have your Meat Grinder Parts!

The Meat Grinder parts on the following pages are parts that normally wear on those grinders. We also have internal parts for many of the grinders but you will have to e-mail for those.

The following meat grinder parts will fit the corresponding electric grinders also.



Plates If the round plate with the holes is 2 1/16 inches in diameter and has a 1/4 in. hole in the center--you probably have a #5 or #301 Universal grinder
Click here to see the meat grinder parts for #5 or 301 grinders

Parts Parts for Universal Model 2 & Model 3


Plate If the round plate with the holes is approx. 2 3/8 inches in diameter and has a 5/16 in. hole in the center--you probably have a #8 or #323 grinder or a combination meat saw/grinder
Click here to see the meat grinder parts for #8 or 323 grinders

platesplates If the round plate with the holes is approx. 2 3/4 inches in diameter and has a 3/8 in. hole in the center--you probably have a #10 or #12 or #333 grinder
Click here to see the meat grinder parts for #10-12-333 grinders

platesplates If the round plate with the holes is approx. 3 1/4 inches in diameter and has a 15/32 in. hole in the center--you probably have a #20 or #22 grinder
Click here to see the meat grinder parts for #20-22 grinders

plate If the round plate with the holes is approx. 3 15/16 inches in diameter and has a 17/32 in. hole in the center--you probably have a #32 grinder
Click here to see the meat grinder parts for #32 grinders

grinder parts If the round plate with the holes is approx. 5 1/16 inches in diameter and has a 3/4 in. hole in the center--you probably have a #42 grinder
Click here to see the meat grinder parts for #42 grinders

grinder parts If the round plate with the holes is approx. 5 1/8 inches in diameter and has a 3/4 in. hole in the center--you probably have a #52 grinder
Click here to see the parts for #52 grinders

grinder parts If the round plate with the holes is approx. 6 inches in diameter and has a 3/4 in. hole in the center--you probably have a #56 grinder
Click here to see the parts for #56 grinders

Grinder Head Assembly Video
